MLC 52 RS VC EU

Details
Fabrikant Extron Prijs € 320,00
Productsheet   (823 KB) Dealerinkoopprijs Dealerinkoopprijs


MLC 52 Series

Control — host ports

Serial control port 1 bidirectional RS-232 front panel 2.5 mm mini stereo jack
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity
Serial control pin configurations Mini stereo jack: tip = TX, ring = RX, sleeve = GND
Program control Extron configuration program for Windows®
Extron Simple Instruction Set (SIS™)
IR learning frequencies 30 kHz to 62 kHz
IR learning distance 4" (10 cm) to 14" (36 cm) from the side panel

Control — serial port (RS models only)

Display control port (1) 3.5 mm captive screw connector, 6 pole for unidirectional RS-232 control (±5 V) (connector is shared with IR control port and power input)
Baud rate and protocol (RS-232) 57600 to 1200 baud (9600 default); 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity

Control — IR port

IR control port (1) 3.5 mm captive screw connector, 6 pole for IR (connector is shared with serial control and power input); TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Control — remote volume (VC models only)

Volume control port (1) 3.5 mm direct insertion captive screw connector, 3 pole
Pin configuration 1 = +10 VDC, 50 mA (max); 2 = volume (variable voltage); 3 = GND
Volume control voltage range 0 V (mute) to 10 V (maximum volume)

General

External power supply 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 2 A, regulated
Power input requirements 12 VDC, 0.15 A
Cooling Convection, no vents
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting
Rack mount
Models other than MK and EU models Yes, with optional rack mounting kit
Furniture mount
Models other than MK and EU models Yes, with optional lectern mounting kit
Wall mount
MLC 52 RS MK, MLC 52 RS VC MK Mounts to a standard 47 mm deep MK electric type British standard wall box
MLC 52 RS EU, MLC 52 RS VC EU Mountable into standard 50 mm deep European junction boxes
Enclosure type
MK and EU models Metal
All other models High-impact plastic
Enclosure dimensions
MLC 52 RS, MLC 52 IR
Faceplate 4.5" H x 2.8" W x 0.1" D
(11.4 cm H x 7.1 cm W x 0.3 cm D) (1 gang)
Device 2.7" H x 1.7" W x 1.4" D
(6.8 cm H x 4.3 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the wall or furniture for device and cable clearance.)

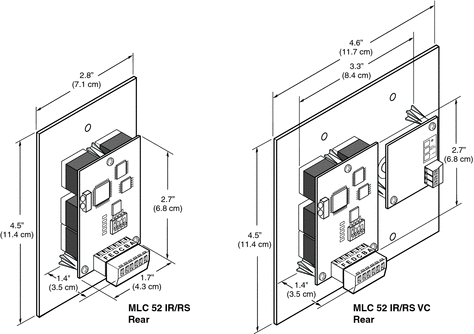

MLC 52 RS VC, MLC 52 IR VC
Faceplate 4.5" H x 4.6" W x 0.1" D
(11.4 cm H x 11.7 cm W x 0.3 cm D) (2 gang)
Device 2.7" H x 3.3" W x 1.4" D
(6.8 cm H x 8.4 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the wall or furniture for device and cable clearance.)

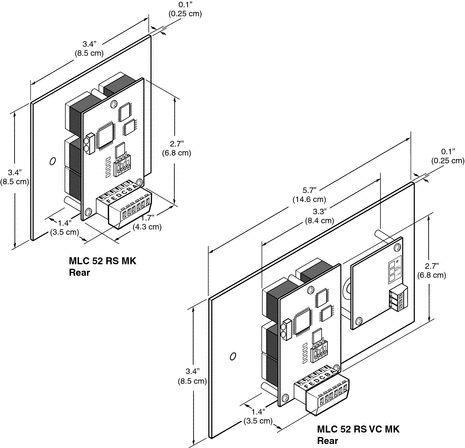

MLC 52 RS MK
Faceplate 3.4" H x 3.4" W x 0.1" D
8.5 cm H x 8.5 cm W x 0.3 cm D
(1-gang MK electric type British Standard wall box frame size)
Device 2.7" H x 1.7" W x 1.4" D
(6.8 cm H x 4.3 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the wall or furniture for device and cable clearance.)
MLC 52 RS VC MK
Faceplate 3.4" H x 5.7" W x 0.1" D
8.5 cm H x 14.6 cm W x 0.3 cm D
(2-gang MK electric type British Standard wall box frame size)
Device 2.7" H x 3.3" W x 1.4" D
(6.8 cm H x 8.4 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the junction box for device and cable clearance.)

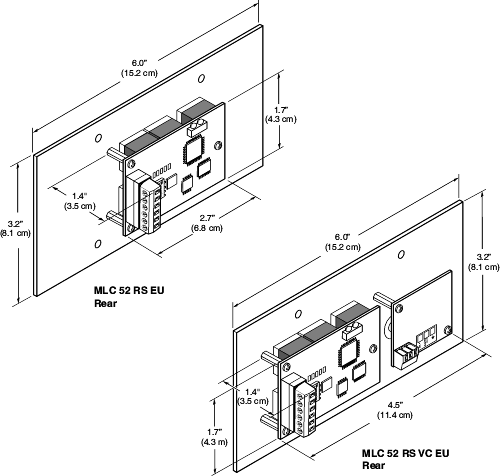

MLC 52 RS EU
Faceplate 3.2" H x 6.0" W x 0.1" D (2-gang EU)
(8.1 cm H x 15.2 cm W x 0.3 cm D)
Device 1.7" H x 2.7" W x 1.4" D
(4.3 cm H x 6.8 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the junction box for device and cable clearance.)
MLC 52 RS VC EU
Faceplate 3.2" H x 6.0" W x 0.1" D (2-gang EU)
(8.1 cm H x 15.2 cm W x 0.3 cm D)
Device 1.7" H x 4.5" W x 1.4" D
(6.8 cm H x 11.4 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the junction box for device and cable clearance.)
Product weight
MLC 52 RS, MLC 52 IR, MLC 52 RS MK 0.2 lb (0.1 kg)
VC and EU models 0.3 lb (0.1 kg)
Shipping weight 3 lbs (2 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE, C-tick, FCC Class A, ICES, Section 508 of the Rehabilitation Act (29 U.S.C. 794d), VCCI Class A
MTBF 30,000 hours
Warranty 3 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
