MLC 226 IP

Details
Fabrikant Extron Prijs € 1320,00
Productsheet   (706 KB) Dealerinkoopprijs Dealerinkoopprijs


MLC 226 Series

IP Intercom

Connection type (IPI–MLC) RJ-45 jack for CAT 5, CAT 5e, or CAT 6 cable
Audio
Frequency response 20 Hz to 3.3 kHz, ±1 dB
Audio processing
Audio format PCM, µ-law companded
Sampling rate 8 kHz
Sample size 16 bit, µ-law companded to 8 bit
Audio latency Software: 30 ms through 160 ms
Network: <150 ms, typical
Audio output
Number/signal type 1 mono (for use with an optional IP Intercom)
Line level output -10 dBV (316 mVrms), unbalanced (via 3.5 mm captive screw connector, 2 pole)
Communication
Transport bandwidth for IPI control and audio, half duplex 80 kbps (0.08% of 100Base-T)
Ethernet protocol TCP/IP (control), UDP (audio)

Control — host ports

Serial host port 2 bidirectional RS-232: 1 rear panel 9-pin female D connector (shared with digital input), 1 front panel 2.5 mm mini stereo jack
Baud rate and protocol 38400, 8 data bits, 1 stop bit, no parity
Serial control pin configurations 9-pin female D connector: 2 = TX, 3 = RX, 5 = GND
Mini stereo jack: tip = TX, ring = RX, sleeve = GND
Ethernet host port 1 RJ-45 female
Ethernet data rate (for network communication) 10/100Base-T, half/full duplex with autodetect
Ethernet protocol ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, SMTP
Ethernet default settings Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off
Web server Up to 200 simultaneous sessions
7.25 MB nonvolatile user memory
Secondary control panel (SCP) (1) 3.5 mm 5-pole direct insertion captive screw connector (shared with control module and IR Link port)
IR remote control IR 402 (optional)
Front panel: 30′ maximum, 40 degrees off axis
Rear panel: 38 kHz, hardwired, modulated
Program control Extron′s configuration program for Windows®
Extron′s Simple Instruction Set (SIS™)
Microsoft® Internet Explorer, Telnet
IR learning frequencies 30 kHz to 62 kHz
IR learning distance 2" (5.1 cm) to 12" (30.5 cm) from the front panel

Control — relay

Number/type 6 momentary or latching (configurable via software)
Connectors (3) 3.5 mm captive screw connectors, 3 pole
Connector configuration Groups A, B, C; each with 1 common and 2 normally open relays (default)
Contact rating 24 V, 1 A

Control — serial ports

Display control port (1) 3.5 mm direct insertion captive screw connector, 3 pole, programmable for bidirectional RS-232 control (±5 V) or TTL level (0 to 5 V) infrared control up to 1 MHz
Switcher control port (1) 3.5 mm direct insertion captive screw connector, 3 pole, for bidirectional RS-232 control (±5 V)
Baud rate and protocol (RS-232) 115200 to 300 baud (9600 baud = default); 8 (default) or 7 data bits; 1(default) or 2 stop bits; no parity (default), or even or odd parity

Control — IR/serial ports

IR/serial control ports (3) 3.5 mm direct insertion captive screw connectors, 2 pole
Programmable: unidirectional RS-232 (±5 V) control, or TTL level (0 to 5 V) infrared control up to 1 MHz
Baud rate and protocol 115200 to 300 baud (9600 baud = default) ; 8 (default) or 7 data bits; 1(default) or 2 stop bits; no parity (default), or even or odd parity

Digital I/O control

Number/type 1 digital input/output (configurable), 1 digital input
Connector 1 rear panel 9-pin female D connector (shared with the serial host port)
(1) 3.5 mm direct insertion captive screw connector (shared with power sense port)
Pin configuration 9-pin female D connector: 1 = digital input, 5 = GND; power sense = digital in, GND = GND
Digital inputs
Input voltage range 0-12 VDC
Input impedance 28k ohms
Programmable pullup 2k ohms to +5 VDC
Threshold low to high >2.8 VDC
Threshold high to low <2.0VDC
Digital output 250 mA sink from 24 VDC, maximum

General

External power supply 100 VAC to 240 VAC, 50/60 Hz, external; to 12 VDC, 1 A, regulated
Power input requirements
MLC 226 IP DV+ 12 VDC, 0.515 A (includes MLC 226 IP and IRCM-DV+)
All other models 12 VDC, 0.495 A (0.515 A with 1 IRCM-DV+ connected)
NOTE An MLC 226 Series controller must be powered by its own power supply. It cannot be powered by an MLS switcher.
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling Convection, unvented
Rack mount
MLC 226 IP DV+ No, but wall- and furniture-mountable
All other models Yes, with optional rack mounting kits, and also wall- and furniture-mountable with optional mounting kits
Enclosure type
MLC 226 IP controller only No faceplate, metal rear enclosure
MLC 226 IP, MLC 226 IP DV+ High-impact plastic faceplate, metal rear enclosure
MLC 226 IP with RAL9010 white faceplate,
MLC 226 IP AAP, MLC 226 IP L 		Metal faceplate, metal rear enclosure

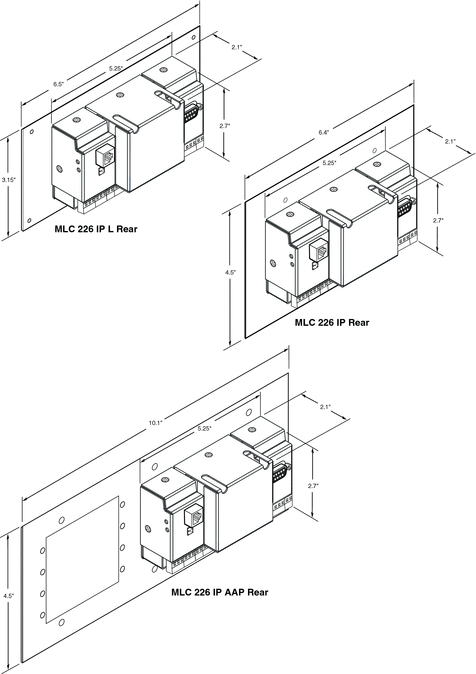

Enclosure dimensions
MLC 226 faceplate 4.5" H x 6.4" W x 0.1" D (11.4 cm H x 16.3 cm W x 0.3 cm D) (3 gang)
MLC 226 AAP, MLC 226 IP DV+ faceplates 4.5" H x 10.0" W x 0.1" D (11.4 cm H x 25.4 cm W x 0.3 cm D) (5 gang)
MLC 226 L faceplate 3.15" H x 6.5" W x 0.1" D (8.0 cm H x 16.5 cm W x 0.3 cm D)
Device
MLC 226 IP DV+ 2.75" H x 5.3" W x 2.0" D (7.0 cm H x 13.5 cm W x 5.9 cm D) and
2.7" H x 2.6" W x 0.9" D (6.9 cm H x 6.6 cm W x 2.3 cm D)
(Depth excludes knob and buttons. Fits some 5 gang boxes. Allow at least 2.1" (5.3 cm) depth in the wall or furniture.)
All other models 2.75" H x 5.3" W x 2.0" D (7.0 cm H x 13.5 cm W x 5.9 cm D)
(Depth excludes knob and buttons. Fits some 3 gang boxes)
Product weight
MLC 226 IP DV+ 2.1 lbs (1.0 kg)
All other models 1.9 lbs (0.9 kg)
Shipping weight 6 lbs (3 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety CE, C-tick, CUL, UL
EMI/EMC CE, C-tick, FCC Class A, VCCI, ICES
Accessibility Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29U.S.C.794d).
MTBF 30,000 hours
Warranty 3 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
