MLC 104 IP Plus

Details

Fabrikant	Extron	Prijs	€ 800,00
Productsheet		Dealerinkoopprijs	Dealerinkoopprijs

MLC 104 IP Plus Series

Control — host ports

Serial host port

1 bidirectional RS-232 front panel 2.5 mm mini stereo jack

Baud rate and protocol

38400, 8 data bits, 1 stop bit, no parity

Serial control pin configurations

Mini stereo jack: tip = TX, ring = RX, sleeve = GND

Ethernet host port

1 RJ-45 female

Ethernet data rate

10/100Base-T, half/full duplex with autodetect

Ethernet protocol

ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Ethernet default settings

Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off

Web server

Up to 200 simultaneous sessions
7.25 MB nonvolatile user memory

Secondary control panel (SCP)

(1) 3.5 mm 5-pole direct insertion captive screw connector

Program control

Extron Global Configurator for Windows^®
Extron Simple Instruction Set (SIS^™)
Microsoft^® Internet Explorer^®, Telnet

IR learning frequencies

30 kHz to 62 kHz

IR learning distance

2" (5.1 cm) to 12" (30.5 cm) from the top panel

Control — serial ports

Display control port

(1) 3.5 mm direct insertion captive screw connector, 3 pole, for bidirectional RS-232 control (± 5V)

Switcher control port

(1) 3.5 mm direct insertion captive screw connector, 3 pole, for bidirectional RS-232 control (±5 V)

Baud rate and protocol (RS-232)

115200 to 300 baud (9600 baud = default); 8 (default) or 7 data bits; 1(default) or 2 stop bits; no parity (default), or even or odd parity

Control — IR port

IR control port

(1) 3.5 mm direct insertion captive screw connector, 2 pole
TTL level (0 to 5 V) infrared control up to 1 MHz

Digital I/O control

Number/type

3 digital input/output (configurable)

Connector

(1) 3.5 mm direct insertion captive screw connector, 4 pole

Pin configuration

1, 2, 3 = digital inputs/outputs 1, 2, and 3; GND = GND

Digital inputs

Input voltage range

0-12 VDC

Input impedance

28k ohms

Programmable pullup

2k ohms to +5 VDC

Threshold low to high

>2.8 VDC

Threshold high to low

<2.0 VDC

Digital outputs

250 mA sink from 24 VDC, maximum

General

External power supply

100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated

Power input requirements

MLC 104 IP Plus DV+

12 VDC, 0.305 A (includes MLC 104 IP Plus and IRCM-DV+)

All other models

12 VDC, 0.285 A (0.305 A if used with an optional IRCM-DV+)

NOTE	An MLC 104 IP Plus Series controller must be powered by its own power supply. It cannot be powered by an MLS switcher.

Temperature/humidity

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling

Convection, unvented

Mounting

Rack mount

All models except MLC 104 IP Plus DV+

Yes, with optional rack mounting kits

Furniture or wall mount

Yes, all models

Enclosure type

MLC 104 IP Plus controller only

No faceplate, metal rear enclosure

MLC 104 IP Plus, MLC 104 IP Plus DV+

High-impact plastic faceplate, metal rear enclosure

MLC 104 IP Plus in RAL9010,
MLC 104 IP Plus AAP, MLC 104 IP Plus L

Metal faceplate, metal rear enclosure

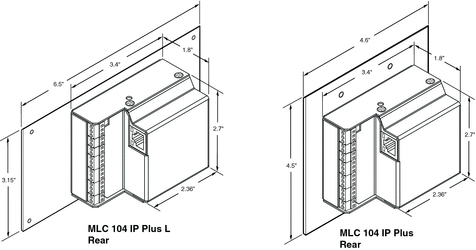

Enclosure dimensions

MLC 104 IP Plus faceplate

4.5" H x 4.6" W x 0.1" D (11.4 cm H x 11.7 cm W x 0.3 cm D) (2 gang)

MLC 104 IP Plus AAP and
MLC 104 IP Plus DV+ faceplates

4.5" H x 8.2" W x 0.1" D (11.4 cm H x 20.9 cm W x 0.3 cm D) (4 gang)

MLC 104 IP Plus L faceplate

3.15" H x 6.5" W x 0.1" D (8.0 cm H x 16.5 cm W x 0.3 cm D)

MLC 104 IP Plus DV+ device

2.7" H x 3.4" W x 1.8" D (6.9 cm H x 8.6 cm W x 4.6 cm D) and
2.7" H x 2.6" W x 0.9" D (6.9 cm H x 6.6 cm W x 2.3 cm D)
(Depth excludes knobs and buttons. Fits some 4 gang wall boxes. Allow at least 1.9" [4.8 cm] depth in the wall or furniture.)

All other models′ device

2.7" H x 3.4" W x 1.8" D (6.9 cm H x 8.6 cm W x 4.6 cm D)
(Depth excludes knob and buttons. Fits some 2 gang boxes. Allow at least 1.9" [4.8cm] depth in the wall or furniture.)
